5-11m³ Van Refrigeration Units with Standby Units -300RFS

> Voltage: AC220V, 1PH, 2KW/AC380V, 3PH, 2.2KW
> Motor Power: 220V-2.2KW/380V-2.2KW
> Application: 5m³/3.2 Meters Body(-20℃)
> Installation: Front Mounted
Standby Van Refrigeration Units TKT-300RFS
TKT-300RFS is specialized for small cargo van to keep frozen, powered by the engine of the vehicle, and standby unit. It has great advantages in Fuel Saving, Environmental and Highly Efficient.

※Exclusive Design for Cargo Van 5 CBM/3.2meters body (-20 ℃) to Keep Frozen;
※Stream Line Design to Apply All Kinds of Van Appearance & Truck Body;
※Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
※Easy Installation & Operation;
※Environment Friendly;
※18 Months Warranty Time After Delivery;



MAIN FEATURES OF TKT TRUCK REFRIGERATION UNITS
  • Really powerful Cooling Capacity, Large Air flow Capacity.
  • Green and Environment-friendly.
  • Famous World Top key components & Best raw materials.
  • Easy to Install and Operate.
  • Certificated by Various High Standard in US and Europe (CE, RHS etc. Certificate).
  • The high quality of the product guarantees its long life.
  • Excellent and considerate After-sales service (18 Months Warranty Time After Delivery;24/7     Service time)
  • Reasonable price.
  • Stylish and intimate design
  • Low current, High-Low voltage protection


Technological Data:
Model TKT-300RFS
Driven Type Engine Driven + Standby Unit
Installation Roof Top Mounted
Voltage Standby AC220V,50Hz(60Hz),1PH / AC380V,50Hz,3PH
Engine Driven DC12V / 24V
Controller Digital, In Cab, Made In Korea
Compressor(Engine Driven) Jap SD5H14(138cc)
Compressor(Standby Unit) Jap SD7L13
Volume of Container  5CBM/3.2 Meters Body(-20℃)
Refrigerant HFC-R404A,1.2-1.3kg
Standby Unit Motor Power 220V - 1.8KW
380V - 1.8KW
Peak Current 220V - 12A
380V - 9A
Running Current 220V - 10A
380V - 7A
Cooling Capacity Engine Driven -20℃-2170 W/7400 BTU
0℃-3520 W/12000 BTU
Stand By -20℃-1740 W/5920 BTU
0℃-2820 W/9600 BTU
Condenser Coil Copper Tube / Aluminum Fin
Fan No. 1 Fan, DIA 280MM
Dimension 1213*483*233mm
Evaporator Coil Copper Tube / Aluminum Fin
Blower No. 2 Blowers, DIA 230MM
Air Flow 1160m³/h
Dimension 1006*590*188 mm
Product material:
The materials used in all TKT products are internationally renowned brands. We choose suppliers from all over the world and work with the world's top brands such as Bitzer, Bock, Danfoss, Sanden, Valeo, Alco and Goodyear.
patent certificates:
Our products have patent certificates for appearance and cores. Our cores are made of copper tubes and aluminum fins, which will make the products last longer. It is different from the parallel flow products in the market. Reduce after-sales problems for you.

STRUCTURE
Structure of Truck Refrigeration Units

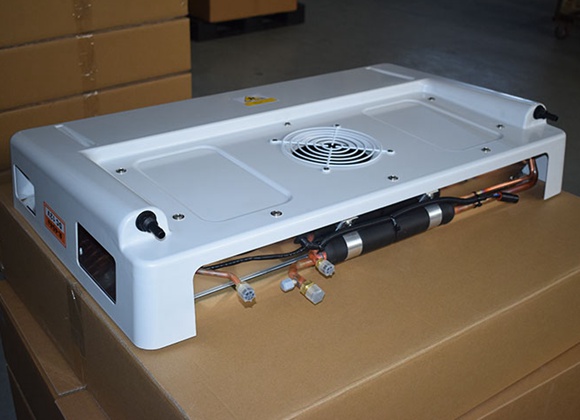

  • Evaporator Assembly;

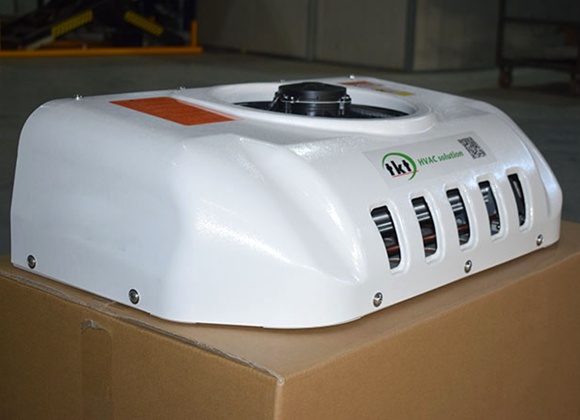

  • Condenser Assembly
  • Compressor
  • In Cab Digital Controller
  • Motor(Stand by unit)
  • Other major components, such as Hoses Pipes, Wire Harness, Installation Accessories.
