TKT Conventional Bus A/C Brief Introduction

TKT, as the leanding manufacture of bus air conditioner system, began the research , design and production of bus a/c from 1993, which is also the first one in China. Until now, TKT bus air conditioner covered 5.5M-18M ect vehicle, such as, van, coach, city bus, inter city bus, inner city bus, transit bus, double deck bus, shuttle bus, labor bus, articulated bus ect all kinds of bus, and can meet all the requirements from customers, for example, low floor, high floor, higher cooling for tropics, ultra thin appearance ect, TKT engineer and design team can accept and meet all the OEM and special requirements.

TKT Conventional A/C Specification:

●A/C for Van/Minibus


Cooling Capacity:5.5KW / 18755BTU	Cooling Capacity: 11 KW / 37510BTU	Cooling Capacity:13 KW / 44330BTU
Compressor:DY5H14/SANDEN5S14	Compressor: DY7H15/SANDEN15	Compressor: XH22/Valeo TM21
Application: Seats Less Than 8(Ambient Temperature 50℃)	Application: Seats Less Than 18(Ambient Temperature 50℃)	Application: Seats Less Than 28(Ambient Temperature 50℃)
Dimension: 745780160mm	Dimension: 1010974194mm	Dimension: 15201100174mm

●A/C for Middle Bus(6-10M)


Cooling Capacity:18KW/61380BTU	Cooling Capacity:20KW/68200BTU	Cooling Capacity: 27KW/97070BTU
Compressor:PLM27	Compressor:AK31/Valeo TM31	Compressor: Bock EX 390k
Application: Less Than 7m Bus	Application: Less Than 8m Bus(Ambient Temperature 50℃)	Application: 9-10M Bus(Ambient Temperature 50℃)
Dimension: 28201630260mm	Dimension: 31201630260mm	Dimension: 31201630260mm

●A/C for Big Bus(11-13M)


Cooling Capacity:34KW/115940BTU	Cooling Capacity:38KW/129580BTU	Cooling Capacity: 40KW/136400BTU
Compressor:Bock Fx40 655k	Compressor:Bock Fx40 655k	Compressor: Bock Fx40 755k
Application: Less Than 11.5m Bus(Ambient Temperature 50℃)	Application: Less Than 12.8m Bus(Ambient Temperature 50℃)	Application: 12-14m Bus(Ambient Temperature 50℃)
Dimension: 41201830275mm	Dimension: 46701830275mm	Dimension: 46701830275mm

TKT Conventional A/C Structure:
▲Besides the standard structure parts of bus air conditioner, for example, condenser assembling, evaporator assembling, compressor, control panel, alternator, HP & LP Pipe ect parts
▲Stopping Valve, to reduce repairmen cost;
▲Patent design of condenser coil to increase heat release area;

TKT Conventional A/C Data Table:

●A/C for Van/Minibus

Model No		TKT-60V	TKT-120V	TKT-140V
Cooling Capacity		6KW/20460BTU	12KW/40920BTU	14KW/47740BTU
Compfessor		DY5H14/SANDEN5S14	DY7H15/SANDEN7H15	XH22/Valeo TM21
Driven Mode		Engine Direct Driven
Installation		Roof Top
Refirgeration		R134A
Voltage/Currents		DC12V(25A)/DC24V(12.5A)	X12V(34A)/DC24V(17A)	DC12V(38A)/ DC24V(19A)
Condenser	Air Flow	1210m³/h	2900m³/h	4200m³/h
Condenser	Fan	2 PCs	2 PCs	2 PCs
Evaporator	Air Flow	750m³/h	2200m³/h	2500m³/h
Evaporator	Blower	1 PCs	2 PCs	2 PCs
Dimension		745780160mm	1010974194mm	15201100174mm
Weight		42KG	56KG	85KG
Application for Vehicle		Passenger Less than 8	Passenger Less than 18	Passenger Less than 28

●A/C for Middle Bus:

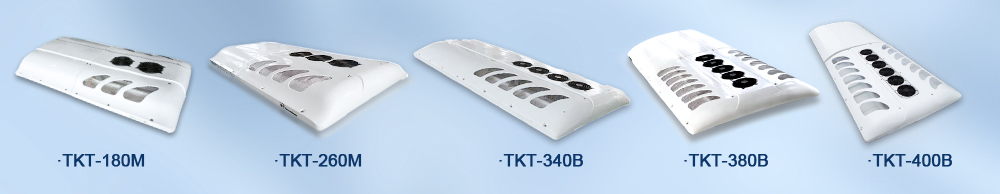

Model No		TKT-180M	TKT-200M	TKT-260M
Cooling Capacity		18KW/61380BTU	20KW/68200BTU	26KW/88660BTU
Compfessor		PLM27	AK31/Valeo TM31	Bock FX 390K
Driven Mode		Engine Direct Driven
Installation		Roof Top
Refirgeration		R134A
Voltage/Currents		DC12V(86A)/DC24V(43A)	DC12V(126A)/DC24V(63A)
Condenser	Air Flow	4400m³/h	6600m³/h	6600m³/h
	Fan	2PCs	3PCs	3 PCs
Evaporator	Air Flow	4400m³/h	4400m³/h	4400m³/h
	Blower	4PCs	4 PCs	4 PCs
Dimension		28201630260mm	31201630260mm	31201630260mm
Weight of Roof Top Units		150KG	162KG	172KG
Application for Vehicle		6-7 Bus	Less than 8m Bus	9-10m Bus

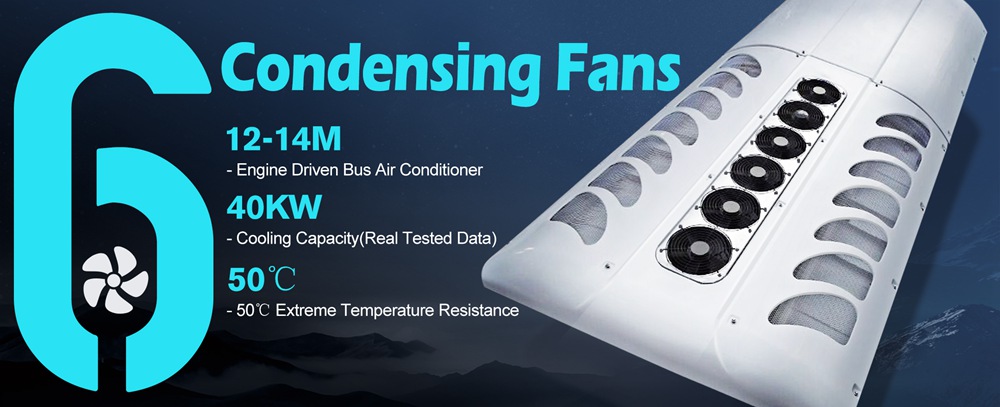

●A/C for Big Bus:

Model No		TKT-340B	TKT-380B	TKT-400B
Cooling Capacity		34KW/115940BTU	38KW/129580BTU	40KW/136400BTU
Compfessor		Bock Fx40 655k	Bock Fx40 655k	Bock FX40 755K
Driven Mode		Engine Direct Driven
Refirgeration		R134A
Voltage		DC24V
Currents		89A	98A	106A
Condenser	Air Flow	8800m³/h	11550m³/h	14400m³/h
	Fan	4PCs	5PCs	6PCs
Evaporator	Air Flow	6600m³/h	9020m³/h
	Blower	6PCs	8 PCs
Dimension		41201830275mm	46701830275mm	46701830275mm
Weight of Roof Top Units		175KG	190KG	195KG
Application for Vehicle		Less Than 11.5m Bus	Less than 12.8m Bus	12-14m Bus

TKT Conventional A/C Main Features：
▲Higher cooling Capacity to meet the tropics requirement;
▲Longer life time than bus;
▲Easy Installation, Operation & Service;
▲Lots of Patents Adopted to guarantee the advanced technology;
▲OEM,ODM& Customized is Accepted;
▲18 Months Free Warranty World Widely, extended up to 10 years
▲Warranty is accepted based on various tender requirement;
▲Service Network covered in 85 countries to guarantee the fast Service;
▲7x24 Hours Online Technical support world widely;

TKT Conventional A/C from design Advantage：
▲Considering 60 Deg.C ambient temperature (Standard 32 Deg.C) before design of bus air conditioner, to make TKT bus A/C system can meet the cooling requirement for all kinds of weather condition;
▲ Adopting Patent design of condenser coil, to increase the heating release ability of condenser assembly, and increase the cooling capacity 2.5% for the whole bus air conditioning system;
▲In house design and production of condenser coil and evaporator coil, and adopting high quality inner screw copper tube and aluminum fin only, it can guarantee the bus air conditioner system lifetime 12-15 years;
▲Adopting higher quality Hydrophilic Aluminum Fin, to guarantee the evaporator coil can keep longer life time under extremely wet condition, and reducing the bacteria breeding, so that the passengers can get cool and health air at the same time;
▲Using the Stop Valve, which can stop the gas running when some place is leaking, and reduced the QTY of gas leakage to save repairmen cost;
▲Adopting Steel Pipe instead of rubber pipe to increase the bus air conditioner life time, and increase the cooling capacity. Rubber pipe has the disadvantage of blocking the system due to refrigerant corrosion after long time running, also the limitation of pipe diameter, whereas steel pipe can use more than 30 years without and corrosion, and can fill more refrigerant to increase the bus air conditioner cooling capacity;
▲Considering the high labor cost for installation, service and repairmen, most of TKT conventional bus air conditioner are made ONE-PIECE design, and left service window to reduce the installation and service time and cost;
▲Patent design of control panel, which considered the easy operation for drivers and easy trouble shooting for technicians, even no need to do special training;

With 30 years design, production , sales and service experience, TKT is already becoming the TOP3 manufacture of bus a/c in the world, sales and service center cover all the major cities in China, and other 85 countries and areas from Asia, Europe, Africa, North America, Latin America and Oceania, especially TKT built the India plant to serve the customers from India and East Asia,and get very good market share and market reputation. TKT will build more and more overseas plants and service center world widely, to provide the best products and perfect service to all the esteemed customers in short time.

OEM/ODM Process

During the passed 24 years, TKT grows to the 100% OEM choice in China, for both bus A/C and truck refrigeration units, such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon ect (Bus A/C), CIMC, Xinfei, Hongyu ect (Truck Refrigeration units). For the international market, TKT is the OEM for TATA Motors, TATA Marcopolo Motors, Daewoo ect, and exported to more than 85 countries with sales and service center.

If you are interested in working with TKT, please feel free to contact us.
