DC EV Charging Station Three In One

TKT has been committed to providing one-stop supporting services for OEMs around the world, and we look forward to our first cooperation. TKT’s EV Charger Three-In-One features fast charging, compatibility with a wide range of EV models, and a user-friendly interface that ensures a quick and easy charging process.
> Max Power of DC: 30kW-60kW
> Output Power of AC: 22kW/44kW
> Input Rating: 3-phase 400V/440V/480V+15% AC
> CE, DIN70121, ISO15118, IEC61851, SAEJ1772, IEC61851-1, IEC 61851-21-2, EN61851-23
TKT Three-in One DC Chargers:
TKT Three-in One DC Chargers:
TKT's Multi-Standard 3-Plug DC Charging Station is the best-selling charging station in Europe and North America, capable of continuous charging at 150-500V with 60kw of power and supporting the charging of up to 3 vehicles at the same time.

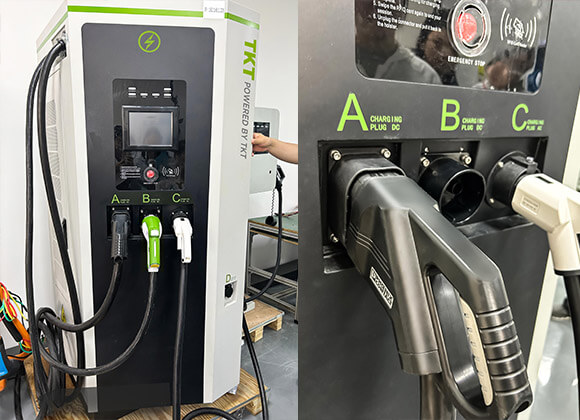

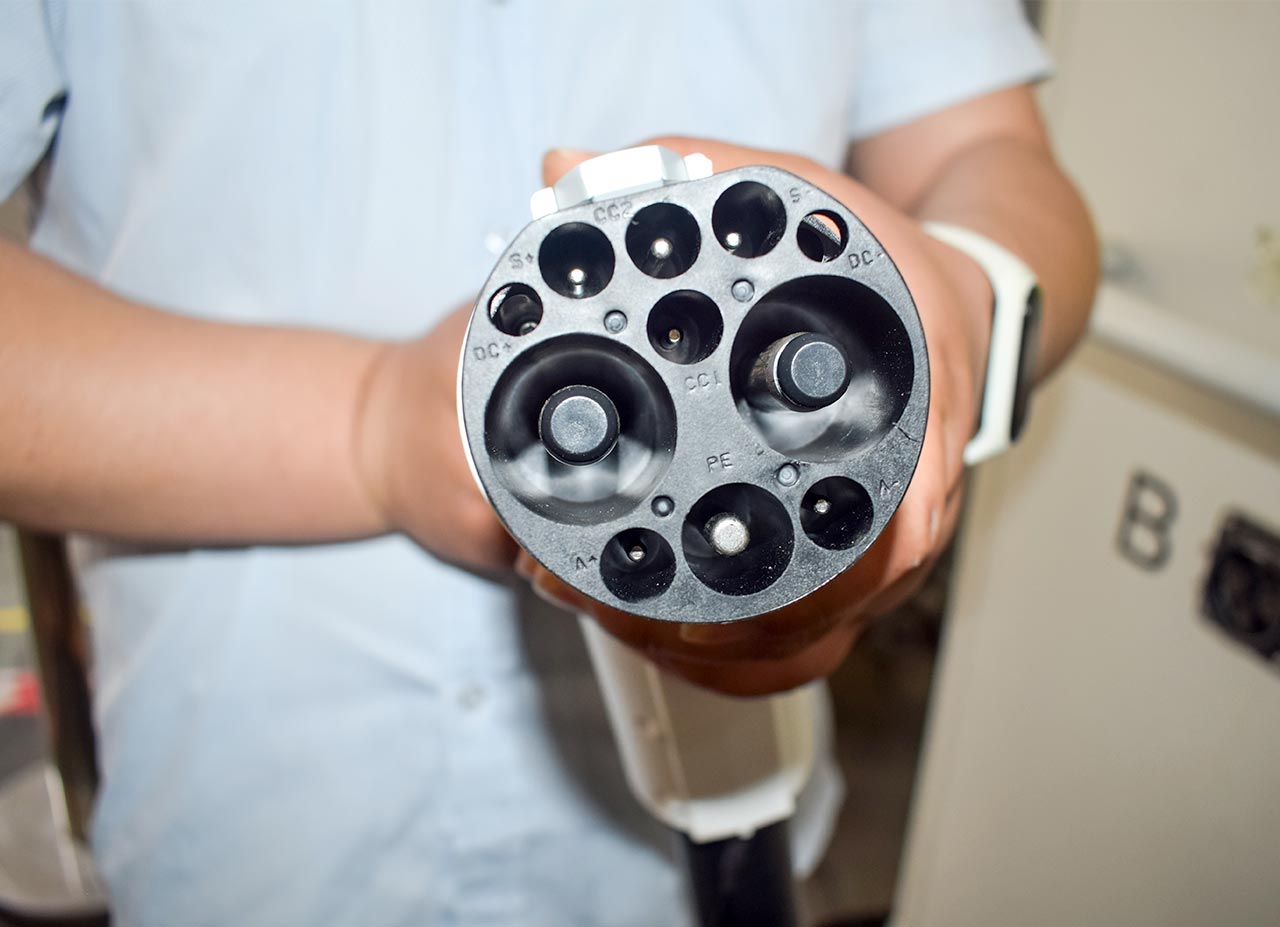

Available with optional CCS, CHAdeMO, GBT and AC Type 2 connectors, these DC fast chargers comply with all relevant international standards required for safe operation in homes, offices, retail stores and gas stations. All chargers come with integrated connectivity services allowing remote monitoring and software upgrades.
The Three-in One DC Chargers modular design that makes it easy to expand and maintain, and supports remote monitoring and online upgrades, providing ultra-high security and reliability.
It can realize fast charging and recharge for a single gun, and can also meet the requirements of simultaneous and average power charging for two guns.

TKT Fast Charging Station Advantage:

For products:

1. All products are custom designed according to international export standards. Compatible with OCPP1.6 and OCPP2.0 charging protocol standards. The charging voltage can be automatically configured according to the needs of different models.
2. All products use high-quality components of international brands. Our gun line is selected from the well-recognized Phoenix brand. All quality and after-sales are guaranteed.
3. Diversified charging methods, such as automatic charging, scheduled charging, quantitative charging, SOC charging and other charging methods are available. Powerful power distribution and constant power functions shorten the charging time by 20%.
4. The fast charging of high-power charging pile can make the vehicle fully charged within 20 minutes, which can save the time of the user and the cost of the operator.

For users:

1. The APP can realize positioning, navigation, appointment charging, scanning code charging, real-time query and other functions. At the same time, it supports APP, one-card and other payment methods.
2. 8-inch touch screen, support multiple languages. The simple design enhances the customer's sense of use.
3. IP55 protection level, moisture-proof, mildew-proof, water-proof, dust-proof, flame retardant. It has protection functions such as over temperature, overload, short circuit, leakage, and battery anti-reverse connection.
4. Humanized design, convenient for customers to swipe card, take out the gun to charge, emergency parking and other operations. The charging gun head is equipped with an electronic lock to prevent the gun head from being pulled out at will while charging to ensure personal safety.

For operators:

1. Integrate Ethernet, 4G communication mode and cloud platform service system. Independent intelligent management realizes user charging, user settlement, report statistics, equipment maintenance, remote monitoring and management and other functions. Managers can also easily count the operation of charging stations.
2. Perfect electrical safety design. It has functions such as timing and real-time monitoring security protection, equipment abnormality pre-diagnosis, alarm feedback, and BMS independent security protection.
3. Our products have a modular design, so each module of the charging pile can be directly upgraded to meet customer needs. At the same time, it has an independent fault diagnosis system. Modules can be replaced independently if there is a problem.

Power 82KW EV Charger 112KW EV Charger 142KW EV Charger
Max Power of DC-1 30KW 60KW 60KW
Max Power of DC-2 30KW 30KW 60KW
Output Power of AC 22KW/44KW 22KW/44KW 22KW/44KW
Input Rating 3-phase 400V/440V/480V+15% AC
Working Frequency 45~65Hz
Output Voltage For DC connectors, output voltage is 150-1000V DC;
For AC connector, output voltage is 3-phase 400V+15% AC
Output Current 0-200A 0-300A 0-400A
Efficiency ≥94%
Power Factor ≥0.99
Display 8'' LCD Touch Screen
Network Connection 4G/Ethernet
Communication Protocols OCPP1.6J (OCPP2.0 upgradable)
Operating Temperature -30℃ ~ +55℃
Storage Temperature -35℃ ~ +55℃
Charging Cable Length 5m/7m
IP Class IP55
Cooling Method Air Cooling
Acoustic Noise 60dB
Support Language Chinese, English, French, German, Spanish, Italian, Portuguese, Russian, Czech, Finnish, Romanian, Thal, Arabic
Certificate TUV CE CE Certificate: IEC61851-1, IEC 61851-21-2, EN61851-23

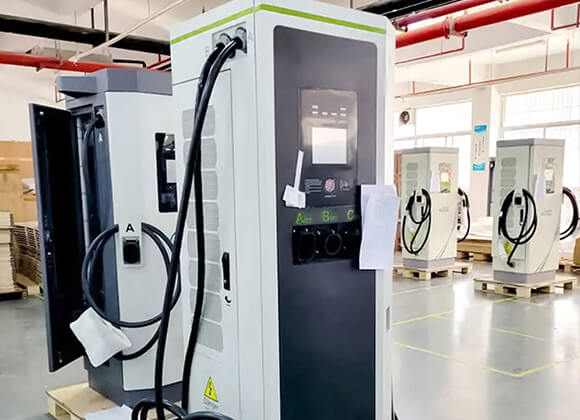

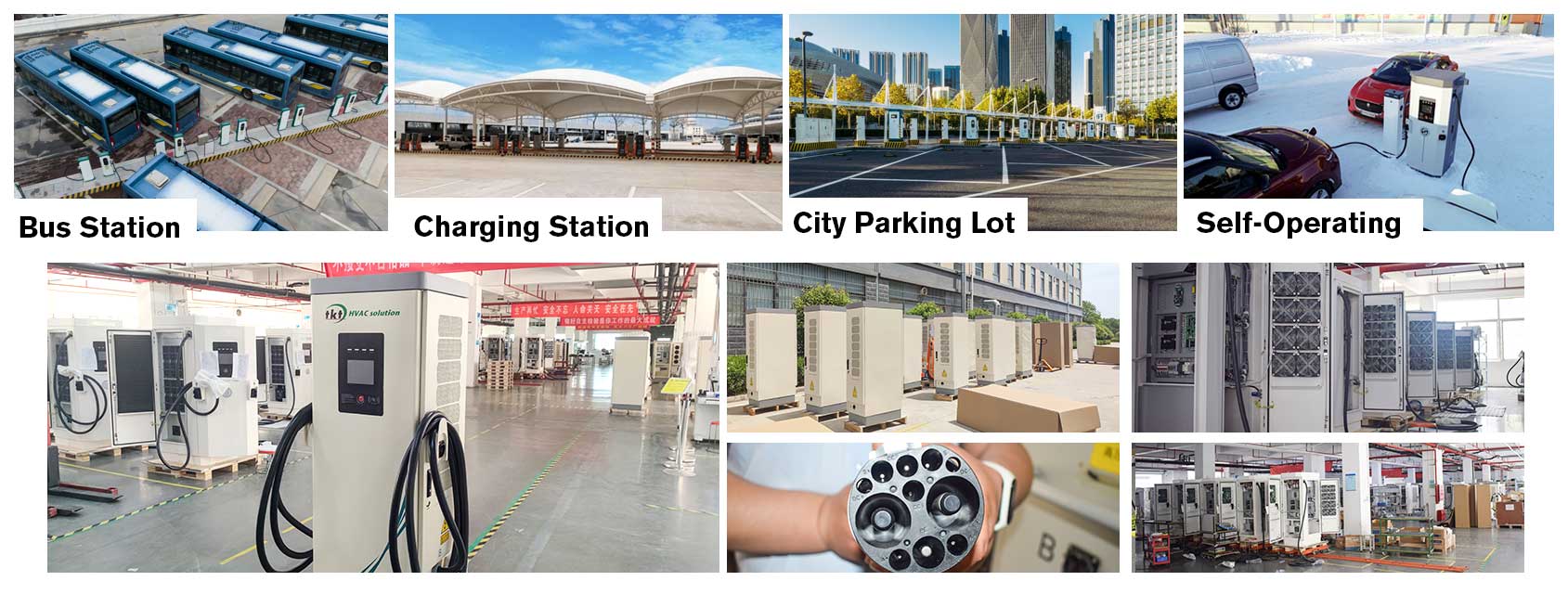

TKT DC charging station Factory:

TKT has been providing comprehensive electric vehicle charging station solutions since 2010 and specializes in electric vehicles air conditioner and battery thermal management systems. We offer a wide range of EV charging station to help our customers in the pure electric vehicle sector around the world to complete a one-stop service. Whether it's a customized charging station product service or a EV charging station installation service, we offer unparalleled service!

TKT has passed ISO9001:2015, IATF16949:2016 quality management system certification, environmental management system certification, intellectual property management system certification and so on. At present, it has obtained more than 100 patents and software Copyrights, and applied for 8 registered trademarks.

TKT has a production floor of nearly 40,000 square meters, with 30 standard fully automatic production lines, which can realize the whole process of manufacturing from SMT, PTH, spraying, testing to assembly. The annual design capacity can reach 150,000 units. We are developing towards the industrialization of power supplies and charging equipment. It has formed long-term and stable cooperative relations with well-known Chinese enterprises such as Yutong Bus, Zhongtong Bus, BYD Automobile, CATL, etc.
