2-8m³ Van Refrigeration Units -300R

> Function: Fresh/Frozen
> Compressor: JAP SD5S14(138cc)
> Application: 6m³/3.2Meters Body(-5℃ )
> Voltage: DC12V/24V
Van Refrigeration Unit TKT-300R:



Brief Introduction of TKT Van Refrigeration Units:

TKT products already cover the entire range of transport refrigeration units. In this part, we will detail the Van refrigeration systems that TKT is now selling.
Considering the different demands of customers for Van refrigeration systems, Truck refrigeration units generally include two types, one for transporting fresh cargo and the other (freezer unit) for transporting frozen cargo on the road. Here are 2 kinds of TKT's hot selling Rooftop-mounted Van refrigeration systems, are Vehicle Engine Direct Driven Van Refrigeration Units and Engine Direct Driven unit with AC220V/380V Electric standby unit for Van respectively.

 All Product:




Technological Data:
Model TKT-300R
Driven Type Engine Driven
Installation Roof Top Mounted
Voltage DC12v / 24V
Compressor JAP SD5S14 (138cc)
Controller Digital, In Cab,Made In Korea
Cooling Capacity  -5℃-2470W/8424 BTU
 0℃-2990W/10200BTU
Volume of Container  6CBM/3.2Meters Body(-5℃ )
Refrigerant  HFC-R404A,1.1-1.3kg
Condenser Coil  Copper Tube / Aluminum Fin
Fan No.  1 Fan, DIA 280MM
Dimension 789*450*212mm
Evaporator Coil  Copper Tube / Aluminum Fin
Blower No.  1 Blowers(Turbo)
Air Flow 955m3/h
Dimension  1010*593*185mm




TKT Van Refrigeration Units Design Advantage:
  • A variety of models to choose & Easy to Operate
This series includes fresh and frozen functions, and the right model can recommend for you according to your different requirements of the cargo type, ambient temperature and the length of the cargo van;
Besides, Our Van Refrigeration System has multi-functional controller with microprocessor control system, and temperature control panel in the cab for the driver to better control the temperature of the Van's Container.
  • High quality Critical components and the best raw materials
The Critical components TKT Refrigeration system uses are imported from Famous World Top Brand with High Quality,such as Danfoss, Sanden, Valeo, etc.;
For Condenser and Evaporator coils, TKT uses all Copper Tubes and Aluminum Fin, corrosion-resistant, so the service life can be up to more than ten years, to improve the life time of the product.
  • Stylish and intimate design, Easy to Install
This series are all Rooftop-mounted design, the condenser is mounted on the roof (For DC Powered Electric Van Refrigeration Units, Condenser Assembly with In-Built Electric Compressor, so you don't need to worry about the space to install the compressor); Besides, Slimline design of Evaporator for maximum cargo space.
  • Green & Environment-friendly
Uses ozone-friendly refrigerant R134A, R404A; For DC Powered Electric Van Refrigeration Units, the compressor and accessories are all powered by electricity, thus reducing energy consumption and protecting the environment.
  • Really powerful Cooling Capacity, Higher efficiency and more stable working.
TKT refrigeration system uses condensers and evaporators made of the best materials (Copper Tubes and Aluminum Fin) to bring you super cooling effect and maximum Air flow capability, Reliable performance to stand against Hot & Dusty climatic conditions.
  • Guarantee the integrity of the cargo during loading and unloading
For the stand by unit, capable of the pre-cooling of the container in advance. Besides, ensures normal operation of the refrigeration unit even when the truck is turned off.
  • Safe Voltage Level
Low current, High-Low voltage protection and more secure system.
  • Certificated by Various High Standard in US and Europe;
CE, RHS etc. Certificate.



Van Refrigeration Units Feature:
  • Really powerful Cooling Capacity, Large Air flow Capacity.
  • Green and Environment-friendly.
  • Famous World Top key components & Best raw materials.
  • Easy to Install and Operate.
  • Certificated by Various High Standard in US and Europe (CE, RHS etc. Certificate).
  • The high quality of the product guarantees its long life.
  • Excellent and considerate After-sales service (18 Months Warranty Time After Delivery;24/7     Service time)
  • Reasonable price.
  • Stylish and intimate design
  • Low current, High-Low voltage protection
Certification:
Our products have patent certificates for appearance and cores. Our cores are made of copper tubes and aluminum fins, which will make the products last longer. It is different from the parallel flow products in the market. Reduce after-sales problems for you.



Test Video:



Structure of Van Refrigeration units:

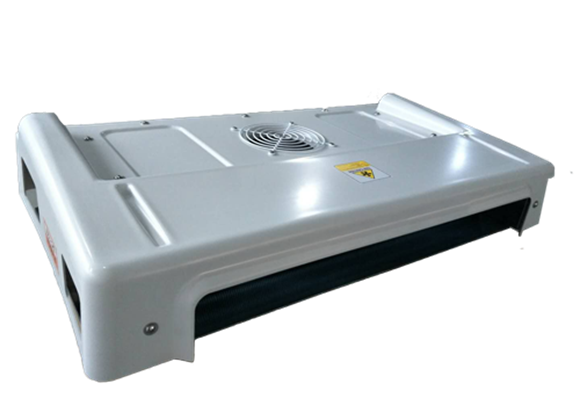

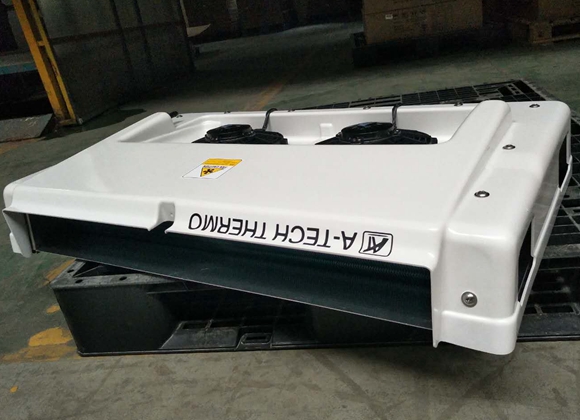

  • Evaporator Assembly;

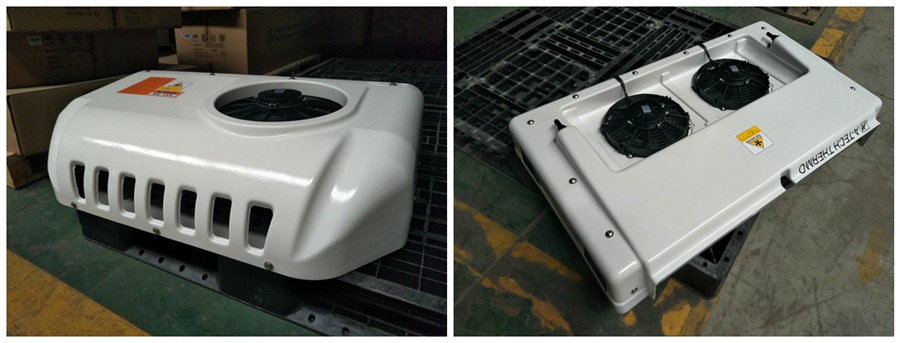

  • Rooftop Mounted Condenser Assembly with In-Built Electric Compressor (For DC Powered Electric Van Refrigeration Units); Independent compressor (For Engine Direct Driven Van Refrigeration Units)
  • In Cab Digital Controller
  • Motor(Stand by unit)
  • Other major components, such as Hoses Pipes, Wire Harness, Installation Accessories.
Inside Components:
  • Evaporator Assembly; Condenser Assembly; Compressor; Digital Controller; Motor; Hoses Pipes, Wire Harness, Installation Accessories.

If you are interested in working with TKT, please feel free to contact us.
