TKT-200RFS is specialized for small refrigerated van to keep frozen, powered by the engine of the vehicle, and standby unit. It has great advantages in Fuel Saving, Environmental and Highly Efficient.

※Exclusive Design for Cargo Van 3 CBM/2.2 Meters Body (-20℃) to Keep Frozen;
※Stream Line Design to Apply All Kinds of Truck Body;
※Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
※Easy Installation & Operation;
※Environment Friendly;
※18 Months Warranty Time After Delivery;

MAIN FEATURES OF TKT TRUCK REFRIGERATION UNITS

Really powerful Cooling Capacity, Large Air flow Capacity.
Green and Environment-friendly.
Famous World Top key components & Best raw materials.
Easy to Install and Operate.
Certificated by Various High Standard in US and Europe (CE, RHS etc. Certificate).
The high quality of the product guarantees its long life.
Excellent and considerate After-sales service (18 Months Warranty Time After Delivery;24/7 Service time)
Reasonable price.
Stylish and intimate design
Low current, High-Low voltage protection

TECHNOLOGICAL DATA:

Model		TKT-200RFS
Driven Type		Engine Driven + Standby Unit
Installation		Roof Top Mounted
Voltage	Standby	AC220V,50Hz(60Hz),1PH / AC380V,50Hz,3PH
	Engine Driven	DC12V / 24V
Controller		Digital, In Cab, Made In Korea
Compressor（Engine Driven）		Jap SD5H14(138cc)
Compressor（Standby Unit）		Jap SD7L13
Volume of Container		3CBM/2.2 Meters Body (-20℃ )
Refrigerant		HFC-R404A,1.1-1.2kg
Standby Unit	Motor Power	220V - 1.8KW
		380V - 1.8KW
	Peak Current	220V - 12A
		380V - 9A
	Running Current	220V - 10A
		380V - 7A
Cooling Capacity	Engine Driven	-20℃-1100 W/3770 BTU
		0℃ -2170 W/7400 BTU
	Stand By	-20℃-890 W/3020 BTU
		0℃ -1740 W/5920 BTU
Condenser	Coil	Copper Tube / Aluminum Fin
	Fan No.	1 Fan, DIA 280MM
	Dimension	916493233 mm
Evaporator	Coil	Copper Tube / Aluminum Fin
	Blower No.	1 Blower, DIA 230MM
	Air Flow	610m³/h
	Dimension	706595190 mm

Product material:

The materials used in all TKT products are internationally renowned brands. We choose suppliers from all over the world and work with the world's top brands such as Bitzer, Bock, Danfoss, Sanden, Valeo, Alco and Goodyear.

patent certificates:

Our products have patent certificates for appearance and cores. Our cores are made of copper tubes and aluminum fins, which will make the products last longer. It is different from the parallel flow products in the market. Reduce after-sales problems for you.

STRUCTURE

Structure of Truck Refrigeration Units

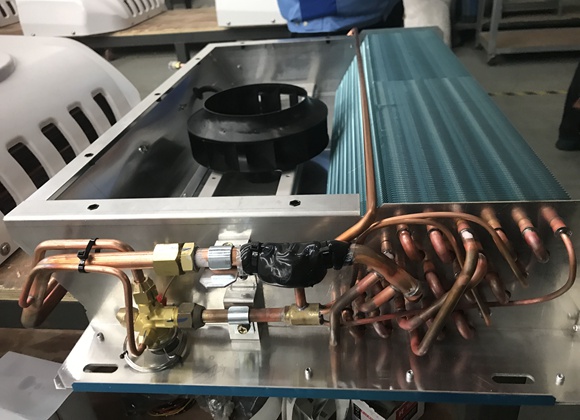

Evaporator Assembly;

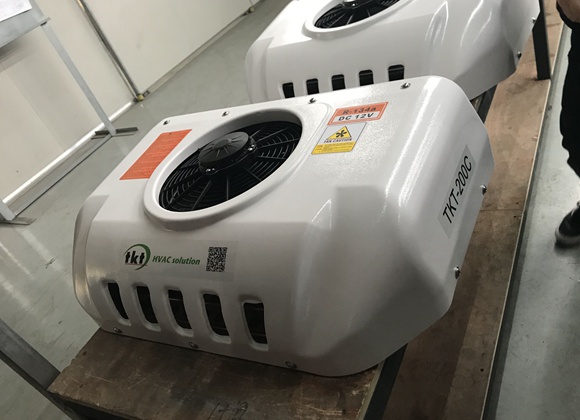

Condenser Assembly
Compressor
In Cab Digital Controller
Motor（Stand by unit）
Other major components, such as Hoses Pipes, Wire Harness, Installation Accessories.

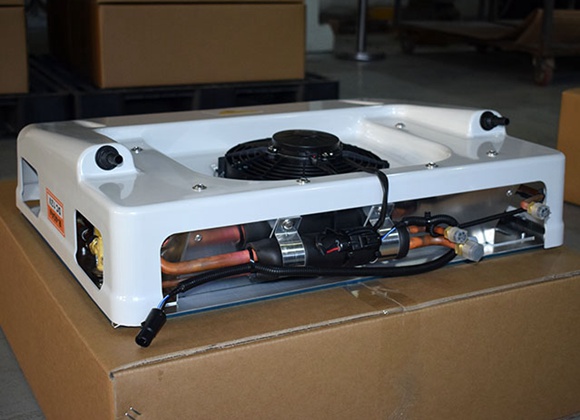

Inside Components

Evaporator Assembly; Condenser Assembly; Compressor; Digital Controller; Motor; Hoses Pipes, Wire Harness, Installation Accessories.
