TKT Electric Van Refrigeration Units

TKT, the leading manufacturer of transport refrigeration units in China, has been researching, designing and producing refrigeration units since 1993, and we were also the first company to design and produce electric refrigeration systems in China.
> OEM/ODM/Customized Available
> Word Leader Manufacture of Van & Truck Refrigeration Units
> TS 16949/ISO9001 2015/ISO 14001 Quality Control Certification
TKT VAN REFRIGERATION BRIEF INTRODUCTION

Brief Introduction of TKT
Van Refrigeration:


TKT products already cover the entire range of transport refrigeration units. In this part, we will detail the Van refrigeration systems that TKT is now selling. Considering the different demands of customers for Van refrigeration systems, Truck refrigeration units generally include two types, one for transporting fresh cargo and the other (freezer unit) for transporting frozen cargo on the road. Here are 3 kinds of TKT's hot selling Rooftop-mounted Van refrigeration systems, are DC Powered Electric Van Refrigeration Units, Vehicle Engine Direct Driven Van Refrigeration Units and Engine Direct Driven unit with AC220V/380V Electric standby unit for Van respectively.


Major Technical Data:

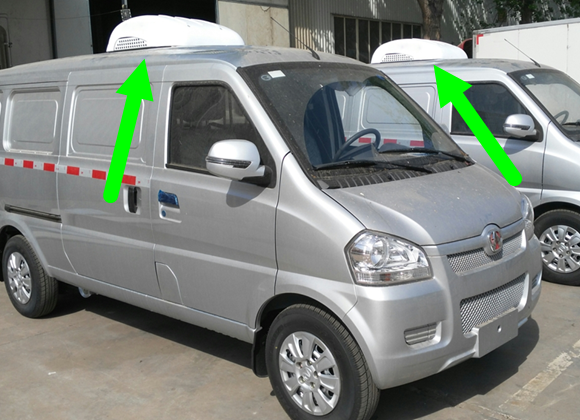

Electric Van Refrigeration Units (2-4m³)
       Function: Fresh/Frozen
       Power: Battery Powered
       Application: 2-4m³(-5℃)
       Dimension: 4670*1830*275mm
Electric Van Refrigeration Units (4-6m³)
       Function: Fresh/Frozen
       Power: Battery Powered
       Application: 4-6m³(-5℃)
       Dimension: 4670*1830*275mm
Standby Refrigeration Units (2-4m³)
       Voltage: AC220V, 1PH, 2KW/AC380V, 3PH, 2.2KW
       Motor Power: 220V-2.2KW/380V-2.2KW
       Application:3m³/2.2 Meters Body (-5 )
       Installation: Front Mounted
Standby Refrigeration Units (4-6m³)
          Voltage: AC220V, 1PH, 2KW/AC380V, 3PH, 2.2KW
        Motor Power: 220V-2.2KW/380V-2.2KW
        Application: 5m³/3.2 Meters Body(-20)
        Installation: Front Mounted


Specification Table:

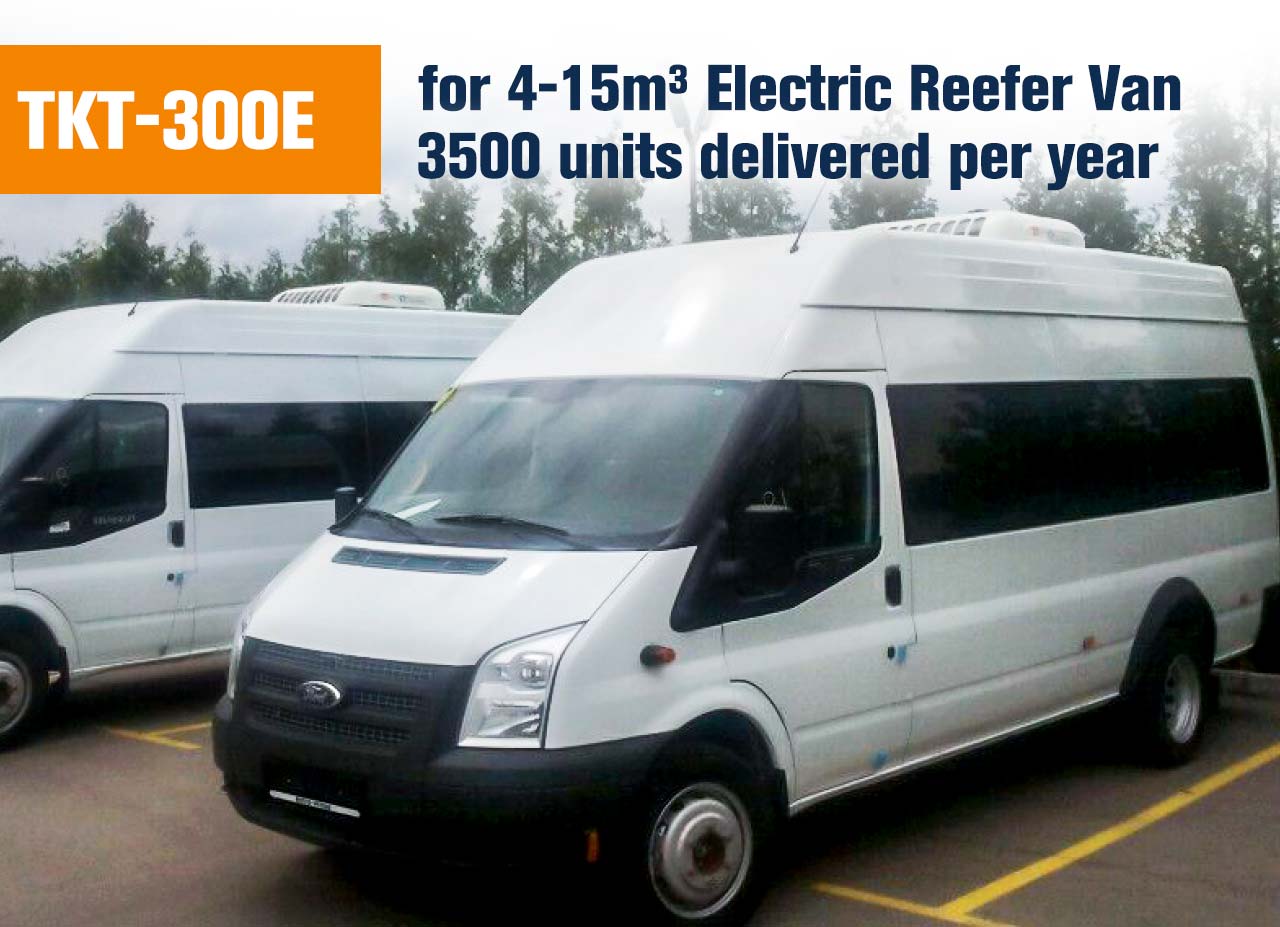

Model TKT-200E TKT-300E
Driven Type Battery Driven
Structure Roof Top Model
Compressor Electrical Compressor(18cc)
Voltage DC12v / 24V
Volume of container 2CBM-4CBM(-5℃ ) 4CBM-6CBM(-5℃)
Refrigerant HFC-R134A,0.9-1.1KG HFC-R134A,1.4-1.6KG
Controller Digital, In Cab
Power Consumption 64A(12V) 80A(12V)
32A(24V) 40A(24V)
Condenser Coil Copper Tube & Aluminum Fin Copper Tube & Aluminum Fin
Fan No. 1 2
Dimension 865*660*210 mm 928*920*251mm
Evaporator Coil Copper Tube & Aluminum Fin Copper Tube & Aluminum Fin
Blower No. 1 2
Air Flow 1300 m3/h 3100 m3/h
Dimension 610*530*167 mm 700*610*193mm

Model TKT-200RFS TKT-300RFS
Driven Type Engine Driven + Standby Unit
Structure Roof Top Mounted
Compressor(Engine Driven) JAP SD5S14 (138cc)
Compressor(Standby Unit) Jap SD7L13
Voltage Engine Driven DC12v / 24V
Standby AC220V,50Hz(60Hz),1PH / AC380V,50Hz,3PH
Volume of container 3CBM/2.2 Meters Body (-20℃ ) 5CBM/3.2 Meters Body(-20℃ )
Refrigerant HFC-R404A,1.1-1.2kg HFC-R404A,1.2-1.3kg
Controller Digital, In Cab, Made in Korea
Standby Unit Motor Power 220V - 1.8KW
380V - 1.8KW
Peak Current 220V - 12A
380V - 9A
Running Current 220V - 10A
380V - 7A
Cooling Capacity Engine Driven -20℃-1100 W/3770 BTU -20℃-2170 W/7400 BTU
0℃ -2170 W/7400 BTU 0℃-3520 W/12000 BTU
Stand By -20℃-890 W/3020 BTU -20℃-1740 W/5920 BTU
0℃ -1740 W/5920 BTU 0℃-2820 W/9600 BTU
Condenser Coil Copper Tube & Aluminum Fin Copper Tube & Aluminum Fin
Fan No. 1 Fan, DIA 280MM 1 Fan, DIA 280MM
Dimension 916*493*233 mm 1213*483*233mm
Evaporator Coil Copper Tube & Aluminum Fin Copper Tube & Aluminum Fin
Blower No. 1 Blower, DIA 230MM 2 Blowers, DIA 230MM
Air Flow 610m3/h 1160m3/h
Dimension 706*595*190mm 1006*590*188mm


The Critical components TKT Refrigeration system uses are imported from Famous World Top Brand with High Quality, and a stylish design that fits any Van model.
Tips: Depending on the type of vehicle, ambient temperature, transported cargo and required cooling capacity, you can choose the most suitable product with the help of our sales team.

Advantage of TKT Van Refrigeration from design
  • A variety of models to choose & Easy to Operate
This series includes fresh and frozen functions, and the right model can recommend for you according to your different requirements of the cargo type, ambient temperature and the length of the cargo van;
Besides, Our Van Refrigeration System has multi-functional controller with microprocessor control system, and temperature control panel in the cab for the driver to better control the temperature of the Van's Container.


  • High quality Critical components and the best raw materials
The Critical components TKT Refrigeration system uses are imported from Famous World Top Brand with High Quality,such as Danfoss, Sanden, Valeo, etc.;
For Condenser and Evaporator coils, TKT uses all Copper Tubes and Aluminum Fin, corrosion-resistant, so the service life can be up to more than ten years, to improve the life time of the product.


  • Stylish and intimate design, Easy to Install
This series are all Rooftop-mounted design, the condenser is mounted on the roof (For DC Powered Electric Van Refrigeration Units, Condenser Assembly with In-Built Electric Compressor, so you don't need to worry about the space to install the compressor); Besides, Slimline design of Evaporator for maximum cargo space.

  • Green & Environment-friendly
Uses ozone-friendly refrigerant R134A, R404A; For DC Powered Electric Van Refrigeration Units, the compressor and accessories are all powered by electricity, thus reducing energy consumption and protecting the environment.

  • Really powerful Cooling Capacity, Higher efficiency and more stable working.
TKT refrigeration system uses condensers and evaporators made of the best materials (Copper Tubes and Aluminum Fin) to bring you super cooling effect and maximum Air flow capability, Reliable performance to stand against Hot & Dusty climatic conditions.

  • Guarantee the integrity of the cargo during loading and unloading
For the stand by unit, capable of the pre-cooling of the container in advance. Besides, ensures normal operation of the refrigeration unit even when the truck is turned off.

  • Safe Voltage Level
Low current, High-Low voltage protection and more secure system.

  • Certificated by Various High Standard in US and Europe;
CE, RHS etc. Certificate.


Main Features of TKT Van Refrigeration
  • Really powerful Cooling Capacity, Large Air flow Capacity.
  • Green and Environment-friendly.
  • Famous World Top key components & Best raw materials.
  • Easy to Install and Operate.
  • Certificated by Various High Standard in US and Europe (CE, RHS etc. Certificate).
  • The high quality of the product guarantees its long life.
  • Excellent and considerate After-sales service (18 Months Warranty Time After Delivery;24/7     Service time)
  • Reasonable price.
  • Stylish and intimate design
  • Low current, High-Low voltage protection


Certification of TKT Van Refrigeration


Test Video of TKT Van Refrigeration
11

Other
Structure of Van Refrigeration;
  • Evaporator Assembly;
  • Rooftop Mounted Condenser Assembly with In-Built Electric Compressor (For DC Powered Electric Van Refrigeration Units); Independent compressor (For Engine Direct Driven Van Refrigeration Units)
  • In Cab Digital Controller
  • Motor(Stand by unit)
  • Other major components, such as Hoses Pipes, Wire Harness, Installation Accessories.

Inside Components

Evaporator Assembly; Condenser Assembly; Compressor; Digital Controller; Motor; Hoses Pipes, Wire Harness, Installation Accessories.
