35m³ Sub Engine Truck Refrigeration Units(-20℃)-1000s

> Engine: Perkins 403D-07

> Compressor: FK40/390TK, 390cc

> Application: 35m³-55m³(-20℃ )

> Installation: Front Mounted

Send Email

Inquiry

Share With:

Product CaTEGORY

Bus Air Conditioner

Electric Bus Air Conditioner

Conventional Bus Air Conditioner

Power Pack Air Conditioner

Battery Thermal Management System

Truck Air Conditioner

Parking Air Conditioner

Conventional Truck Air Conditioner

RV Air Conditioner

Truck Refrigeration Units

Standby Refrigeration Units

Diesel Engine Refrigeration Units

Van Refrigeration Units

Electric Van Refrigeration Units

Direct-Drive Van Refrigeration Units

Three Wheelers Refrigeration Units

Refrigerated Truck Body

Phone: + 86-13592448740

Email : sales@tkthvac.com

Whatsapp: +86 15136726261

Address: No. 218, Youdong Road, Wujiang District, Suzhou City, JiangsuProvince,China Post Code: 215228.

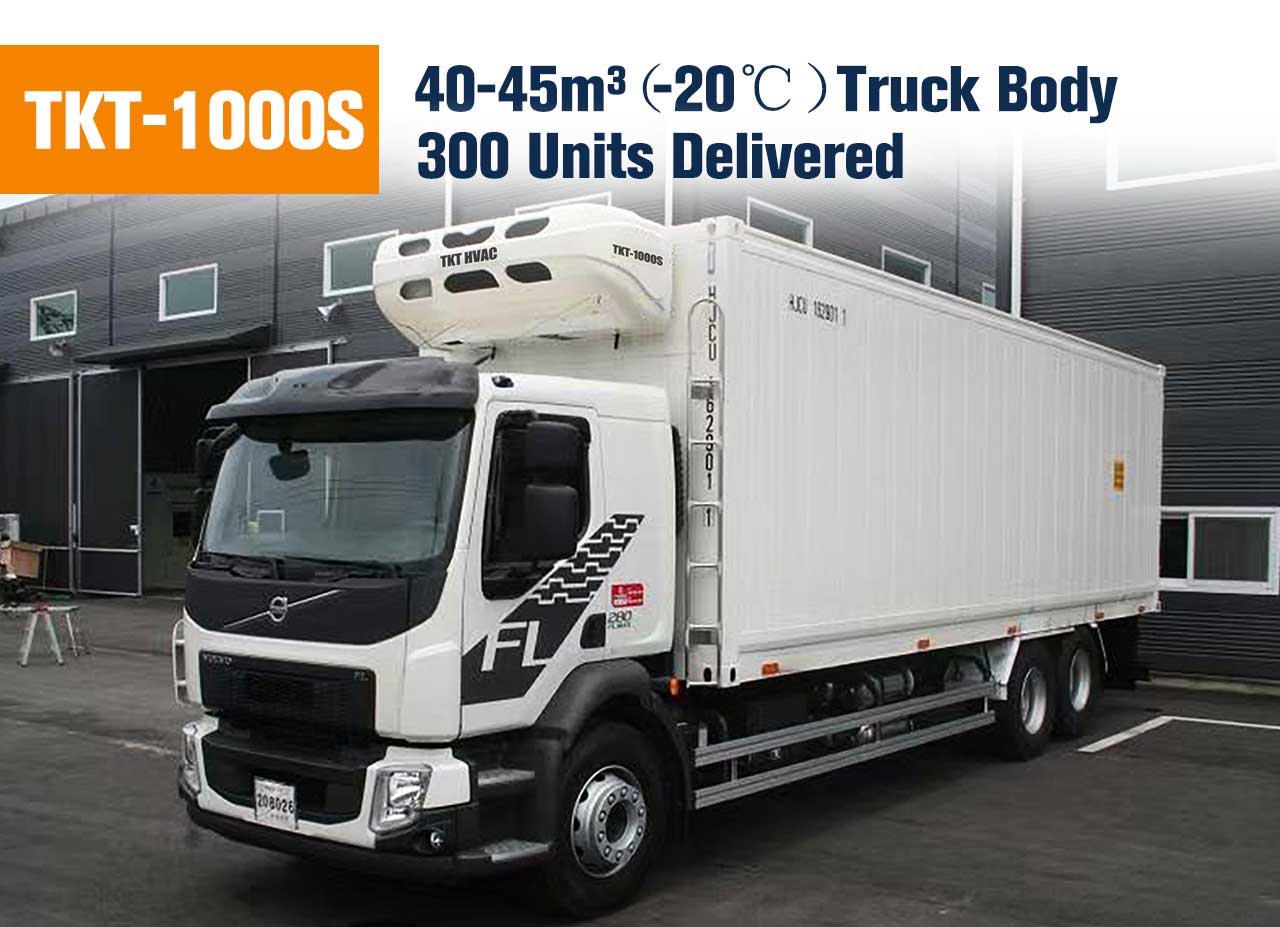

Transport Refirgeration Units TKT-1000S

TKT-1000S is specialized for 35-55m3 refrigerated truck body to keep Fresh/Frozen, powered by sub engine and standby. It can greatly reduced the equipment failure probability. Two kinds of driven models ensure the normal working condition. It has great advantages in fuel saving, environmental and highly efficient.

1. Stream Line Design to Apply All Kinds of Van Appearance & Truck Body;

2. Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;

3. Installed with many kinds of safety protection devices;

4. With standard configuration and control assembly;

5. Two kinds of driven model: sub engine and standby;

6. 18 Months Warranty Time After Delivery;

MAIN FEATURES OF TKT TRUCK REFRIGERATION UNITS

Really powerful Cooling Capacity, Large Air flow Capacity.
Green and Environment-friendly.
Famous World Top key components & Best raw materials.
Easy to Install and Operate.
Certificated by Various High Standard in US and Europe (CE, RHS etc. Certificate).
The high quality of the product guarantees its long life.
Excellent and considerate After-sales service (18 Months Warranty Time After Delivery;24/7 Service time)
Reasonable price.
Stylish and intimate design
Low current, High-Low voltage protection

Technological Data:

Product Name	Diesel Engine Refrigeration Units -- TKT-1000S
Type	Vehicle Engine Driven Compressor
Structure	Truck Body, Front Mounted Installation
Controller	Digital, In Cab
Refrigerant	R404a
Air Volume	2580m3/h
Voltage	Standby		AC220V,50Hz(60Hz),3PH / AC380V,50Hz,3PH
	Sub Diesel Engine		DC12v
Volume of Container	35 CBM-55 CBM(-20℃ )
Weight	495KG
Application Scope	35-55m3
Drive Model	Sub Diesel Engine
	Standby Unit
Engine	Brand		Perkins
	Model		403D-07
	Displacement		0.76L
	Number of cylinder		Water cooling/3 cylinder
Compressor	Model		FK40/390TK
	Displacement		390CC
	Number of cylinder		4
Dimension	Overall		1825860630mm
	Evaporator hole size		1245*350mm
Cooling Ability	Temp Range	0℃/+30℃		-20℃/+30℃
	Engine	7925w		5165w
		27024BTU		17613BTU
	Standby	6515w		4490w
		22216BTU		15340BTU

Product material:

The materials used in all TKT products are internationally renowned brands. We choose suppliers from all over the world and work with the world's top brands such as Bitzer, Bock, Danfoss, Sanden, Valeo, Alco and Goodyear.

patent certificates:

Our products have patent certificates for appearance and cores. Our cores are made of copper tubes and aluminum fins, which will make the products last longer. It is different from the parallel flow products in the market. Reduce after-sales problems for you.

STRUCTURE

Structure of Truck Refrigeration Units

Evaporator Assembly;
Condenser Assembly
Compressor
In Cab Digital Controller
Motor（Stand by unit）
Other major components, such as Hoses Pipes, Wire Harness, Installation Accessories.

Inside Components

Evaporator Assembly; Condenser Assembly; Compressor; Digital Controller; Motor; Hoses Pipes, Wire Harness, Installation Accessories.

OEM/ODM Process
During the passed 24 years, TKT grows to the 100% OEM choice in China, for both bus A/C and truck refrigeration units, such as Yutong, Nanjing Golden Dragon, Xiamen Golden Dragon ect (Bus A/C), CIMC, Xinfei, Hongyu ect (Truck Refrigeration units). For the international market, TKT is the OEM for TATA Motors, TATA Marcopolo Motors, Daewoo ect, and exported to more than 85 countries with sales and service center.

If you are interested in working with TKT, please feel free to contact us.
