rooftop bus air conditioner
diesel engine air conditioner
OEM bus air conditioner

11.6-12.6M Bus-380PB

> Cooling Capacity:38KW/129580BTU
> Power: Sub Engine
> Application: Less Than 12.8 Bus

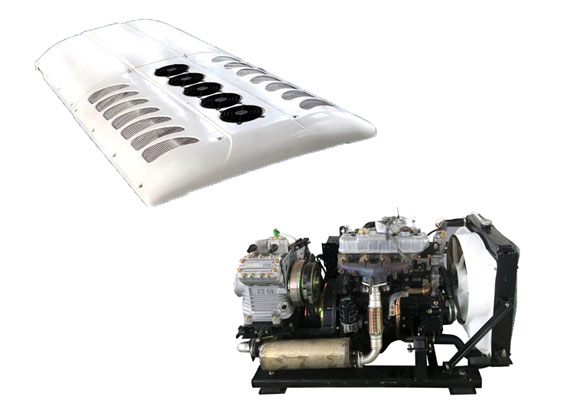

Power Pack Air Conditioner

TKT-380PB Bus Air Conditioner is designed for 11-13M City Bus, Coach and Intercity Bus(Ambient Temperature 55 ℃). It is powered by Sub Diesel Engine, you can feel the cool air without influence the performance of bus in hot summer. It is famous in Mid East, South America, Europe, South Africa and Asia. It has great advantage as follows:


※High Cooling Capacity & Reliable Performance Suitable for Most Places in World;
※Stream Line Design to Apply All Kinds of Buses;
※Independent Diesel Engine, Not Influence the Speed of Bus;
※Environment Friendly;
※Cheap Price with High Quality;
※18 Months Warranty Time After Delivery;


Technical Parameters of TKT-380PB Bus Air Conditioner

Model No. TKT-380PB
Structure Roof Top Model
Cooling Capacity 38KW/129580BTU/ 29770 Kcal/h
Expansion Valve Danfoss, 9.6 T
Voltage DC24V
Power Consumption 95A
Condenser QTY of Condenser Fan 6 PCs
Condenser Coil Type Copper Tube & Aluminum Fin
Condenser Air Flow 14400M3/H
Evaporator QTY of Evaporator Blower 8 PCs
Evaporator Coil Type Copper Tube & Aluminum Fin
Evaporator Air Flow 9020M3/H
Alternator Bosh, 150A Battery less
Refrigerant R134A
Dimension of Roof Top Unit 4670X1830X275MM
Dimension of power pack 1300x650x695MM
Weight for Roof Top Unit 190KG
Compressor Brand & Model No.: Bock(Germany), FX40 755k
Displacement:755CC
Pulley Type: 2A2B
Alternator & Capacitance Box Brand & Model No.: BOSCH(USA)
Type: F042308017455  150A, Batteryless
Capacitance Box: SZXG-III
Application 12-14M City Bus, Coach and Intercity Bus(Ambient Temperature 55 ℃)
Engine Brand & ModelNo. :tSUZU 4JB1 (Assembling in China)
Type: 4 Cylinder, Inline
Displacement:2.771 L
Rated Power:57KW/3 600rpm
Low Speed for A/C:1000- 1200RPM (For Fuel Saving)
High Speed for A/C:1600 1800RPM (For High Cooling)
Min Fuel Consumption: <221 g/kw.h
Water Tank Pure Aluminum Design
Special Design for Qatar Market
Guarantee the Engine Working Under 69 Deg.c Air Temperature
Power Pack Unit Dimension: 1300x650x695MM (Lx W x H)
Weight: 410KG
Special Design: Secondary Shock Absorption/High
Temperature Resistant Design/Stone Guard Design
Noise;l< 89db
Application 10-11.6M City Bus, Coach and Intercity Bus(Ambient
Temperature 55 °C)
WHY CHOOSE TKT
Product material:
The materials used in all TKT products are internationally renowned brands. We choose suppliers from all over the world and work with the world's top brands such as Bitzer, Bock, Danfoss, Sanden, Valeo, Alco and Goodyear.

patent certificates:
Our products have patent certificates for appearance and cores. Our cores are made of copper tubes and aluminum fins, which will make the products last longer. It is different from the parallel flow products in the market. Reduce after-sales problems for you.
